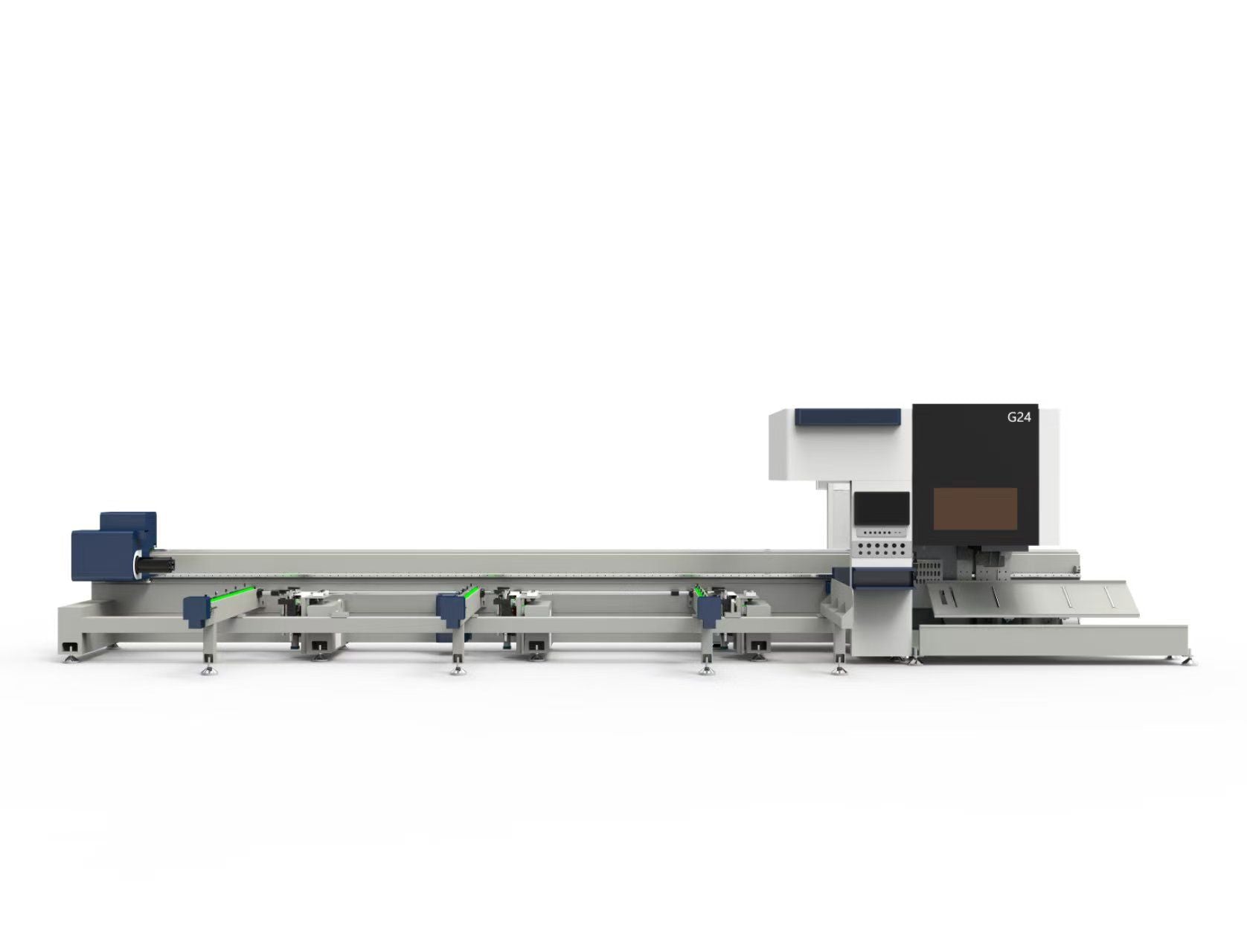

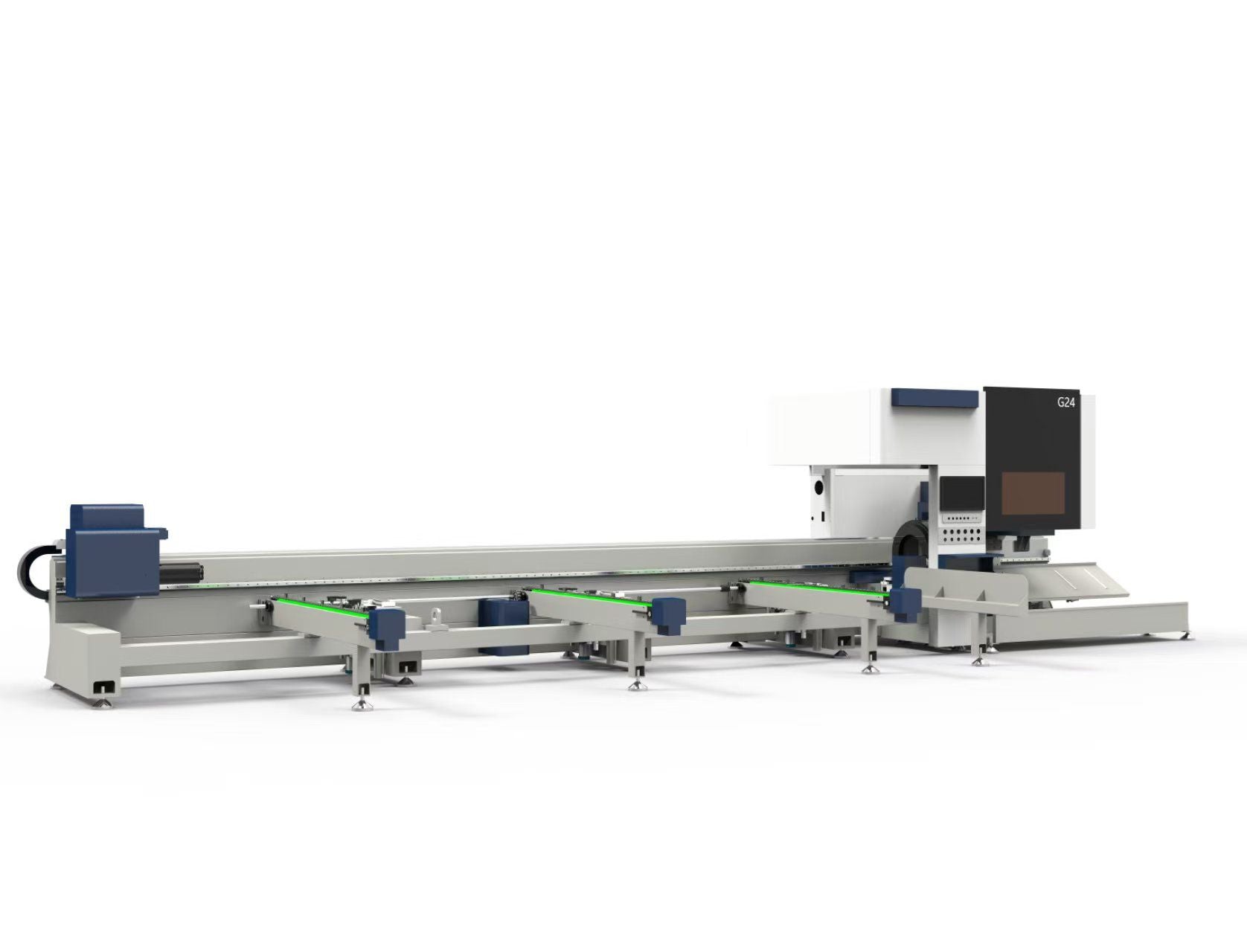

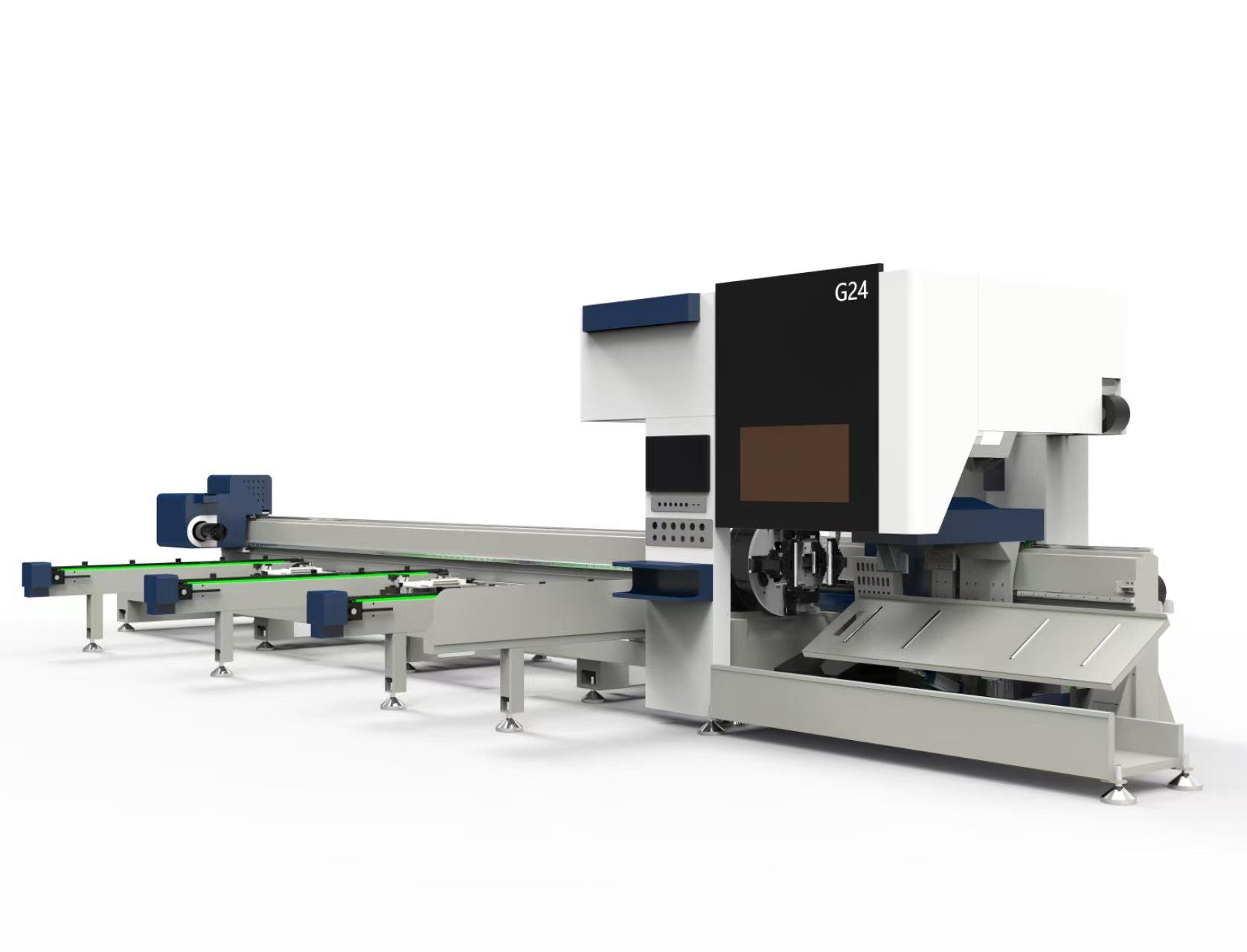

PipePro 24 – 6kW - X107 Fiber Tube Laser Cutter with Automatic Front Loading

Built for High-Volume Tube Processing
T-Series Pipe Cutting Lasers

Note: Tube Cutting machines are built to order! Lead time for all units is 60-75 days.

The PipePro X107 is a production-grade fiber tube laser cutting system engineered for manufacturers who demand speed, precision, and automation. Featuring a powerful 6kW fiber laser source, 12-inch heavy-duty pneumatic chucks, and an automatic front-loading system, the X107-24 delivers exceptional throughput while reducing labor requirements and material handling time.

Designed to process round tube, square tube, rectangular tube, channel, angle iron, and other structural profiles, the PipePro X107-24 transforms raw material into finished parts with unmatched efficiency.

Key Features

6kW High-Performance Fiber Laser

Cut carbon steel, stainless steel, aluminum, brass, copper, and other metals with exceptional edge quality and speed. The 6kW source provides the power needed for demanding production environments while maintaining excellent cut consistency.

12" Heavy-Duty Pneumatic Chucks

Large-capacity front and rear chucks securely grip material up to 12 inches (300mm) in diameter, allowing processing of a wide range of tube and pipe sizes while maintaining outstanding positioning accuracy.

Automatic Front Loading System

Increase productivity and reduce operator involvement with the integrated automatic front loader. Material bundles can be staged for continuous feeding, minimizing downtime between parts and maximizing spindle utilization. Up to 5 pipes load at once.

24-Foot Material Capacity

The extended machine platform accommodates long tube lengths, making it ideal for structural fabrication, agricultural equipment, transportation components, construction products, and industrial manufacturing.

Intelligent Nesting & Material Optimization

Advanced tube-cutting software automatically nests parts to maximize material utilization, reducing scrap and lowering production costs.

High-Speed Servo Motion System

Industrial-grade servo drives provide rapid acceleration, smooth motion control, and precise positioning for superior cut quality and repeatability.

Automatic Centering Technology

Automatic chuck centering significantly reduces setup time and ensures accurate alignment of material before cutting begins.

Bevel, Hole, Slot & Complex Geometry Capability

Produce intricate tube features in a single operation, including:

• Through holes
• Slots
• Tabs
• Coping cuts
• Fishmouth joints
• Miter cuts
• Interlocking assemblies
• Complex contours and profiles

Designed for Modern Manufacturing

The PipePro X107-24 replaces multiple secondary operations by combining measuring, marking, drilling, coping, and cutting into a single automated process.

Ideal Applications

• Structural steel fabrication
• Handrails and guardrails
• Agricultural equipment
• Trailer manufacturing
• Automotive components
• Furniture manufacturing
• Exercise equipment
• Sign structures
• Construction products
• OEM manufacturing

Benefits

✓ Reduce labor costs through automated loading and processing

✓ Increase throughput with continuous material feeding

✓ Eliminate manual measuring and layout work

✓ Improve part accuracy and repeatability

✓ Reduce material waste through intelligent nesting

✓ Shorten production lead times

✓ Minimize secondary machining operations

✓ Process a wide range of tube profiles and materials

Standard Specifications

Automation Meets Productivity

Whether you're cutting a handful of custom parts or running high-volume production around the clock, the PipePro X107-24 delivers the speed, reliability, and automation required to stay competitive in today's manufacturing environment.

Request a quote today to learn how the PipePro X107-24 can increase throughput, reduce labor costs, and transform your tube fabrication workflow.
